Moduly 5 kWh Nodz – Scalable, Plug‑and‑Play Home Energy Storage
Store up to 5 kWh of power, shave peak rates, and keep your lights on—no electrician required.
Enjoy fast processing, flexible payments, and quick Free shipment straight to your door.
Complete your energy solution today!
(Delivery under 8 weeks)
Affordable Financing Options – No Upfront Costs

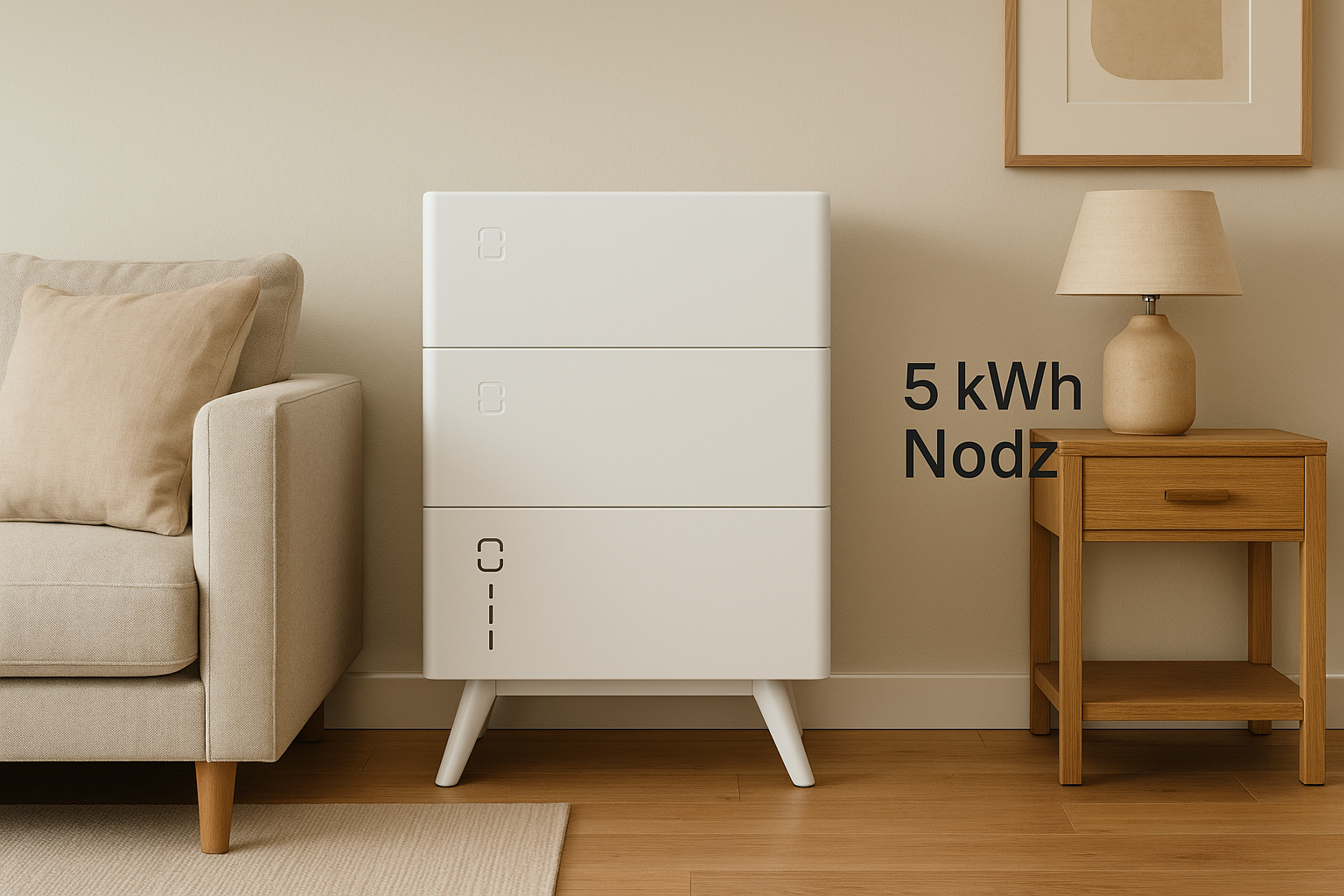

Moduly Nodz 5 kWh Plug‑and‑Play Energy Storage System
Balance flexibility and power with the Moduly 5 kWh system. Tailored for medium‑sized homes or light commercial applications, this unit offers robust backup power and intelligent energy optimization.
Features:
- Scalable Power – Store 5 kWh to cover evening peak hours.
- Plug‑and‑Play – DIY installation in under 15 minutes, no electrician required.
- AI‑Optimized – Automatically shift usage to off‑peak rates for maximum savings.
- Resilient Backup – Keep critical loads running during outages.
- Solar‑Compatible – Integrates with all major solar inverter brands.
Ideal for:
- Small to medium‑sized homes with moderate energy demands.
- Enhancing solar energy storage and peak‑hour management.
- Reliable backup power during extended outages.
Ensure your energy needs are met, day or night.
Performance Specs
- Input AC Voltage: AC 110 V (60 Hz)
- On-Grid Power: 1.8 kW
- Maximum on-grid power: 2 kW/4 kW peak
- Energy Capacity: 2.5 kWh up to 12.5 kWh
Off-grid inverter / UPS
Rated power: 2000 W
- Peak power: 4000 W
- Input voltage range: 20 - 31 V
- Output voltage: 110 VAC ± 5%
- Output frequency: 60 Hz ± 0.5 Hz
- Output waveform: Pure Sine Wave
- Operating temperature: -14 °F to 122 oF (-10 °C to 50 °C)
Protection function
Low voltage, Over voltage, Overload,
Over temperature, Short circuit, Input
reverse polarity (burn fuse)
Mechanical Specs
5 kWh Nødz
- Size: 69 cm x 20 cm x 81.7 cm (27.2 in x 7.9 in x 32.2 in)
- Weight: 205.8 lbs (93.5 kg)
Moduly Controller
- Size: 69 cm x 20 cm x 27.5 cm (27.2 in x 7.9 in x 10.8 in)
- Weight: 56.2 lbs (25.5 kg)
Moduly Battery
- Size: 69 cm x 20 cm x 21.8 cm (27.2 in x 7.9 in x 8.6 in)
- Weight: 70.7 lbs (32.1 kg)
Legs
- Size: 42.3 cm x 18 cm x 10.6 cm (16.7 in x 7.1 in x 4.2 in)
- Weight: 8.4 lbs (3.8 kg)
Battery specifications (per module)
- Battery chemistry LiFePO4
- Nominal voltage 25.6 V
- Voltage range 17.6 V - 29.2 V
- Nominal capacity 96 Ah/2.46 kWh
- Charging current Standard 0.2 C(19 A)/Rapid 0.5 C(48 A)
- Max continuous discharge current 100 A
- Operating temperature 32 °F to 113 oF (0 °C to 45 °C)
BMS protection function
- Over-discharge, Overcharge, Short
circuit, Temperature protection,
Overcurrent protection
Battery charger
- Maximum output voltage 29.2 ± 0.2 VDC
- Nominal output power 800 W
Input voltage 100 - 240 VAC 50 Hz/60 Hz - Maximum input current 15 A (AC)
- Operating temperature 14 °F to 122 oF (-10 °C to 50 °C)
- Protection function Over voltage, Over temperature, Short circuit, Input reverse polarity
Safety and compliance
- Controller Certifications UL 2054, UL 62368-1, CAN/CSA C22.2, No. 62368-1:19, IEEE 1547
- Battery Certifications ANSI/CAN/UL 1973, FCC, Environmental (for battery) California Prop 65, Transportation UN 38.3, Protection Anti-islanding
DIY solar integration in minutes—our 5 kWh Nodz cuts grid use by 15% and provides plug‑and‑play backup power
Our Commitment
Need more capacity?
Meet Moduly Nødz
FAQ
Yes, We deliver directly to your residence. An allocated tracking number will be supplied for monitoring the shipment. A secure delivery process
The delivery timeframe varies based on location. Typically, it can take around 8 weeks, sometimes quicker, sometimes longer, depending on logistical factors and customs.
The time required for installation varies based on the individual or location chosen for your Moduly, but typically takes less than 30 minutes
No particular maintenance is essential. Preserve the Moduly Secure, clean, and in a temperature-controlled space
