Moduly
10 kWh Nødz - Partner Order Request
Quantity:
This is ONLY a request to order (this is NOT an order for) a 10 kWh Moduly Nødz. You will receive an invoice from Moduly with payment amounts and instructions per your partner agreement once this order is approved.

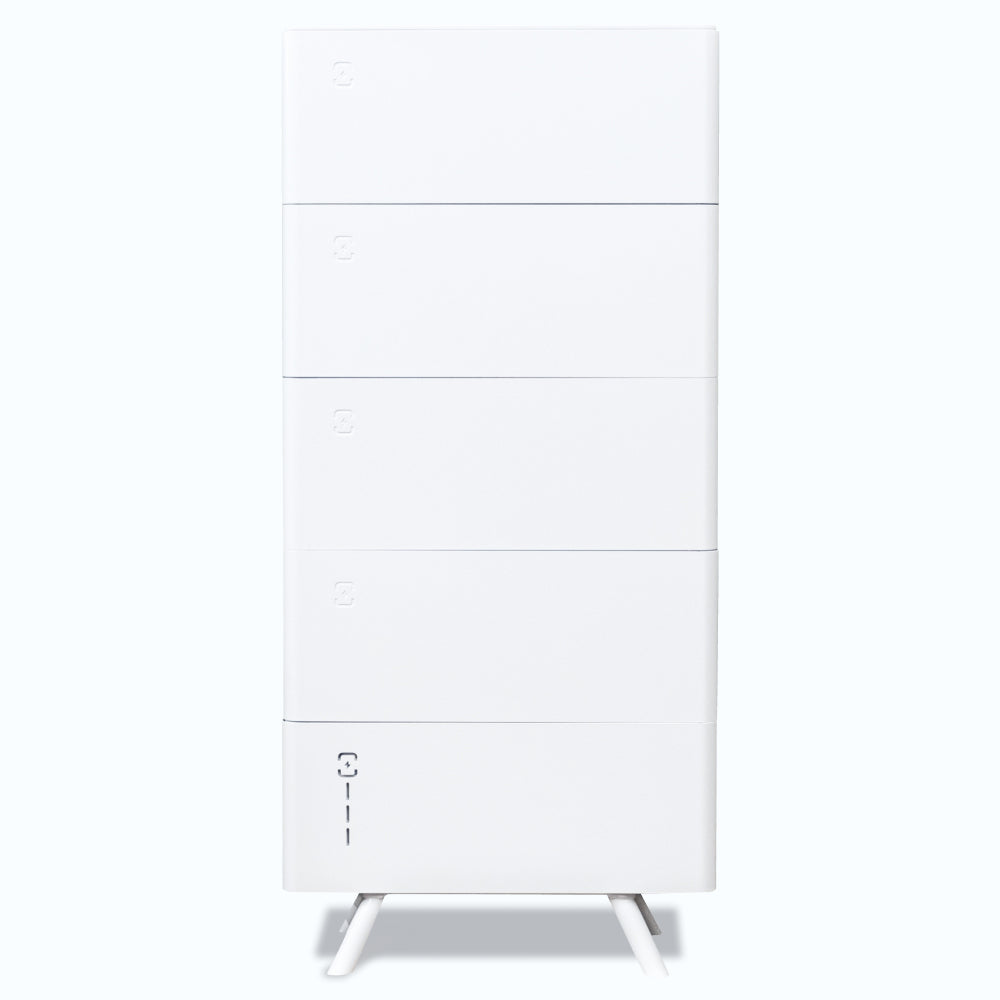

The 10 kWh Moduly Nødz includes a main control unit and 4 x 2.5 kWh battery modules. Each Nødz includes a battery management system (BMS), communication software as well as a Wifi & Bluetooth communication system.
Performance Specs
- Max Output Current 15 A @12 0VAC (60 Hz)
- On-Grid Power 2 kW
- Backup Power 2 kW/ 4k W peak
- Energy Capacity 2.5 kWh up to 12.5 kWh
Mechanical Specs
10 kWh Nødz
- Size: 69 cm x 20 cm x 124.1 cm (27.2 in x 7.9 in x 49 in)
- Weight: 341.8 lbs (155.1 kg)
Moduly Controller
- Size: 69 cm x 20 cm x 27.5 cm (27.2 in x 7.9 in x 10.8 in)
- Weight: 51.4 lbs (23.3 kg)
Moduly Battery
- Size: 69 cm x 20 cm x 21.5 cm (27.2 in x 7.9 in x 8.5 in)
- Weight: 70.5 lbs (32 kg)
Legs
- Size: 42.3 cm x 18 cm x 10.6 cm (16.7 in x 7.1 in x 4.2 in)
- Weight: 8.4 lbs (3.8 kg)
